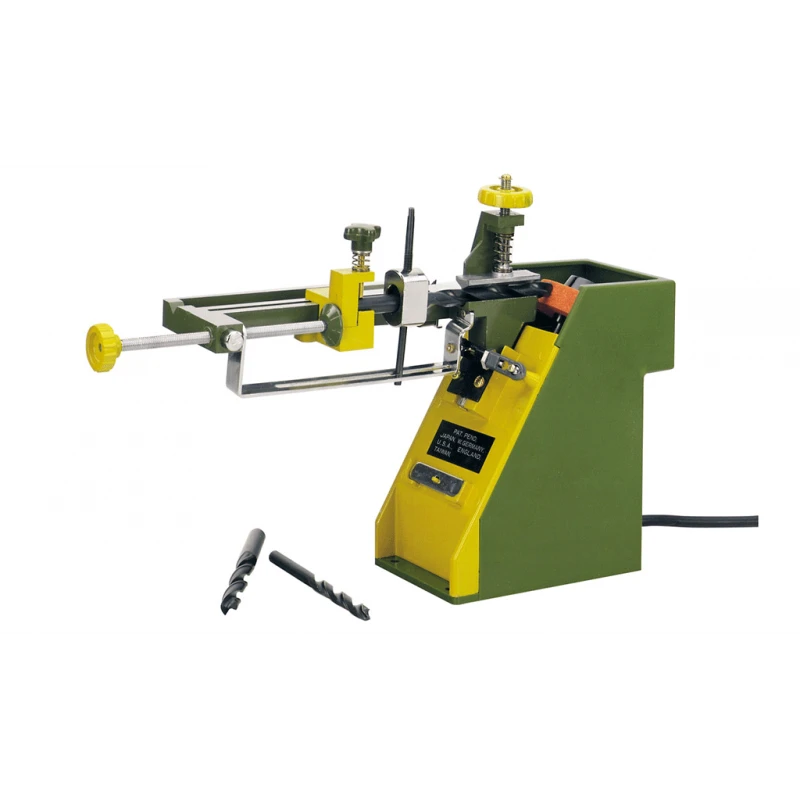

BSG 220 - Proxxon drill sharpener

Drill sharpener BSG 220 Proxxon - 21200

Sharpening is done by pivoting the arm in the prism.

During this movement, the arm also pivots on itself. This gives the necessary remains. A dial allows quick adjustment. The integrated scrubbing device cleans the grinding wheel at the touch of a button.

Technical data:

230 V. 85 W.
Corundum disc (50 x 13 mm).
Housing with mounting base on workbench.
Weight 1.7 kg.
Comes with spare disc and user manual.

Remark:

The BSG 220 drill sharpener is relatively easy to handle. It also allows inexperienced users to sharpen drills according to the DIN standard. However, it is absolutely essential to first carefully read the instructions for use provided. A test carried out at first glance (without having read the leaflet) rarely gives satisfactory sharpening results.

Crush the grinding wheel.

Accessories:

- Adapter for sharpening helical forests up to Ø 3 mm - REF: 21232

Ø 1.5 to 3 mm for BSG 220 sharpener.
1 piece of each in diameter 1.5 - 1.6 - 2 - 2.4 - 2.5 and 3 mm.
Clean packaging in a wooden box with sliding lid.

- Replacement wheels for BSG 220 (50 x 13 mm) - REF : 28308

Upper Corundum.
(Hardness n). Bore 12.7 mm.

- Silicon carbide - REF : 28310

Bore 12.7 mm.
Soft material for very hard materials.
