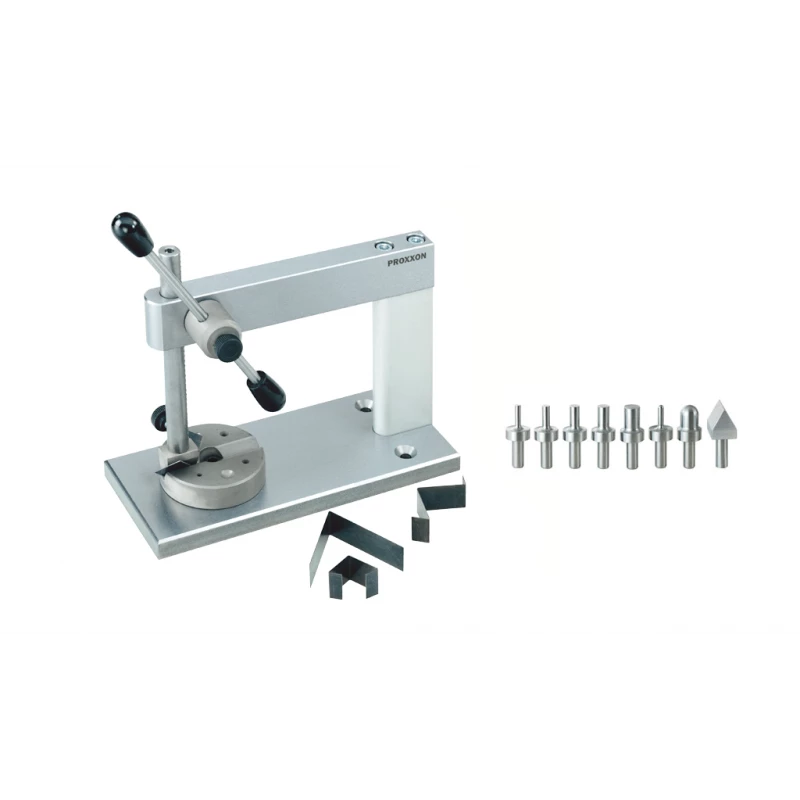

MP 120 - Proxxon MICRO Press Folder

Pressing, riveting, boxing, bending wires or sheet metal. Push and fold soft and leathery materials.

With 5 cylindrical punches (hardened surface) that attach to the rack by means of the knurled screw: Ø 3 - 4 - 5 - 6 and 8 mm. In addition a hemispherical profile Ø 3 and 9 mm as well as a 60° angular prism to bend metal angles. The counterpart is an easily adjustable tempered turret with all the boreholes and dies needed for the punches mentioned below.

Toothed rack at one end with 6 mm bore for the use of the 8 punches included. 5 mm bore at the other front end for use of all commercially available riveting tools: simply turn the rack up, go out there and reinsert it upside down.

Pressure: 1,000 N (100 kg).
Maximum rack stroke with inserted punch of 65 mm, above the turret of 50 mm.
Solid steel arm with a reach of 120 mm.
Rectified steel top, 80 x 190 mm with an 8 mm hole in the center and 2 holes for fixing.
Weight approx. 2.800 g.
