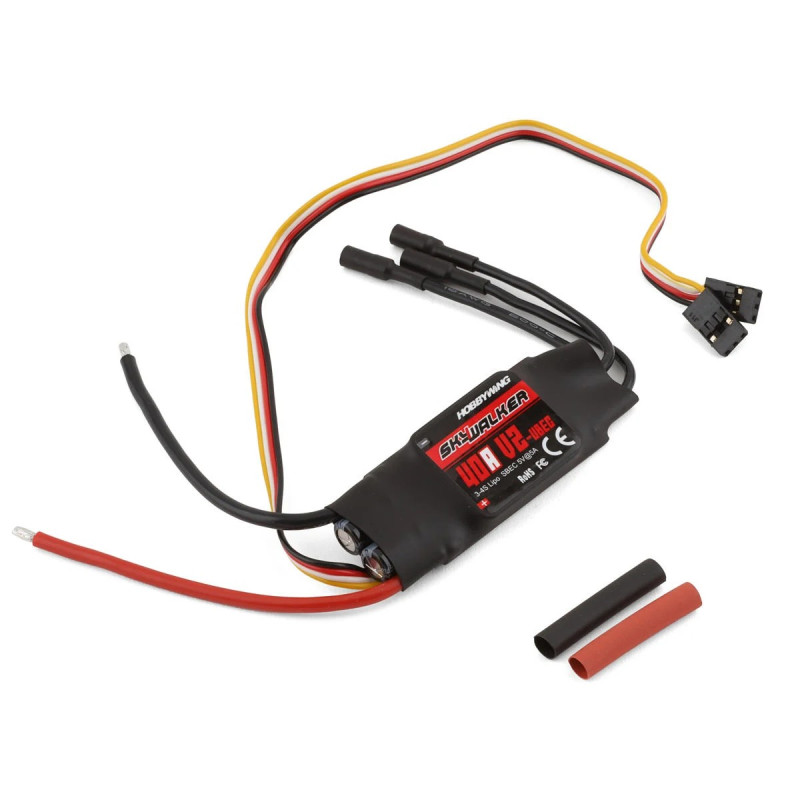

SkyWalker 40A 4S V2 Brushless ESC Controller Hobbywing

Hobbywing SkyWalker 40A V2 Speed Controller for RC Aircraft. - 60080022

This is what characterizes the SKYWALKER V2 series. A high-performance and economical range.
High-performance 32-bit ARM M0 processor running up to 96 MHz,
Supports maximum speed up to 300,000 rpm (2-pole motor).

The DEO (Driving Efficiency Optimization) technology implemented in these ESCs has multiple advantages: Fast and smooth throttle response, better stability and flexibility during flight. Higher piloting efficiency and longer flight times. The operating temperature is low, which also brings reliability.

Reversing - Braking

With the Brake-Reverse mode, the landing distance is shortened. Normal braking mode and brake-off mode are also available. The braking degree is adjustable in normal braking mode.

Search mode

Search mode can help users find their plane by beeping the engine when it is difficult to find their plane after a crash.
This mode can also be used to prompt the user to disconnect the battery of an ESC that has not been running for a set time to prevent battery discharge.

Multiple protections

Several protection functions are included: abnormal input voltage, ESC temperature, loss of throttle signal (or Fail Safe) and low voltage cutoff.

Adjustable parameters

Programmable with the LED programming box or directly with its transmitter.

Features :

Current/Peak: 40/60A
Input current: 3-4S Lipo
BEC Output: Adjustable 5V 5A
Cable: 14 AWG 100 mm
Motor sockets: 3.5 mm
Dimensions: 60x25x8 mm
Weight: 36g
