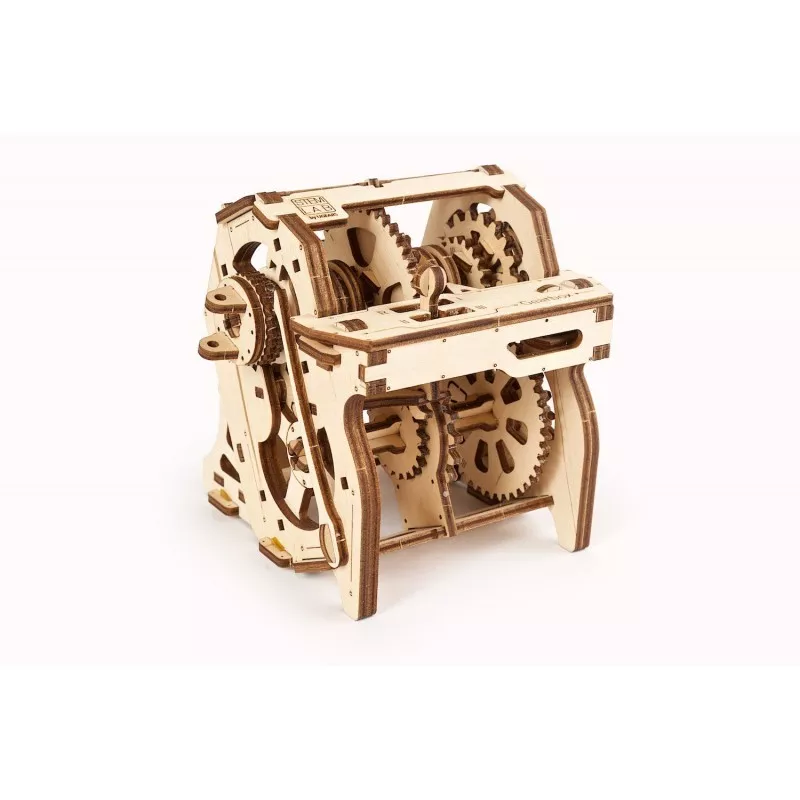

Pendule Speed Box - STEM Puzzle 3D wood UGEARS

The invention of the gearbox came from the famous German engineer Karl Benz.
A gearbox is mainly used in the automotive industry as part of the automobile transmission. It is a mechanism that transfers torque from the engine shaft to the wheels.

Our Gearbox serves as a learning tool rather than a puzzle. Indeed, just like other Ugears models, assembling STEM models is fun and complete: everything you need to build, learn and discover comes in a box.

The Ugears Gearbox comes with step-by-step, colour instructions that are really easy to follow (in several languages including French). In particular, it does not require any glue or special tools to be fully assembled.

How the STEM Ugears Gearbox Works

The gearbox is a stylized pedagogical model, an interactive study guide to the mechanism. Indeed, it is designed to learn its essential principles and its principles of operation. A mechanical gearbox is a gearbox that provides speed and torque conversions from an engine to the drive.

After assembly, you can experiment with the Ugears manual gearbox, in turn, choose I, II, III or reverse with a kinematic pair of gears with different gears and, by turning the actuator handle clockwise, you can look and control the rotational speed of the intermediate and drive shaft. In an "N" position - idling in which the two clutch gables of the intermediate shaft remain uncoupled and idling; The first speed rotates the intermediate shaft and gears at the lowest speed; The second gear allows the drive shaft with the steering wheel to turn at an average speed.

The third gear allows the intermediate shaft and all gears to rotate at the highest speed. Turn on the reverse and see how the drive clutch gable moves to and connects to the "R" gable, transferring the rotation to the lower gable and propelling the middle shaft and all gears to turn backwards.

Technical info

High-quality wood from sustainable sources is the kit of the Gearbox. It also contains everything you might need for assembly. In addition, we use a laser method to cut parts from a plywood board and provide precise cuts. Remove the pieces from the boards and assemble them to create the complete model.

To assemble yourself, without the use of glue.

Dimensions: 13 x 10 x 11 cm
Number of coins: 120

Assembly: 1 to 2 hours
