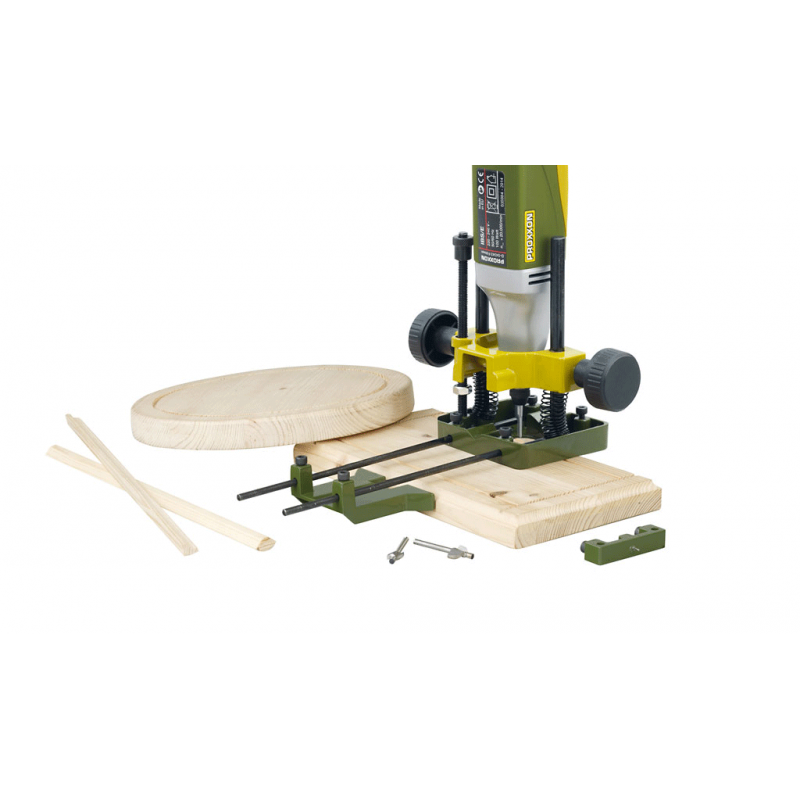

OFV - Cutting adapter, proxxon milling guide

For MICROMOT tools with 20 mm collar. For grooving, milling grooves and edges.

It does not matter, whether with the parallel stop (max. reach 150 mm) or for circular milling with centering tip (100 - 400 mm) or hands-free. Die-cast aluminum with flat milled support surface. Adjustable depth stop with pre-selectable stroke. Ideal also as a drilling aid for round parts thanks to the prisms provided in the guide plate.

Remark:

The IBS/E industrial grinder and cutters are not part of the delivery.

Recommended accessories:

HSS profile cutters for wood

For wood and fiber plates.
Clean draft for good results and good surface quality.
Great stability.
Axes 3.2 mm.

ref 29024 - groove cutter - Ø 3,2 mm
ref 29026 - groove cutter - Ø 4,8 mm
ref 29028 - groove cutter - Ø 6,5 mm
ref 29030 - throat cutters - Ø 6.4 mm
ref 29032 - V-grooved cutters - Ø 6,5 mm
ref 29034 - quarter round cutters - 6.5/2.5 mm
ref 29036 - quarter round cutters - R 3.2 mm
ref 29038 - leaf cutters - 6.4 mm
ref 29040 - quarter round cutters - 5 mm
ref 29044 - corner cutter - 45°

HSS profile cutter set for wood, 10 pieces - ref 29020

Contains 1 strawberry of each kind proposed. Carefully stored in a wooden box.

Careful:
The wood profile cutters offered here should only be used with tools equipped with a protective or guiding device. For example the MICRO-Top MP 400 or the OFV drill adapter.
