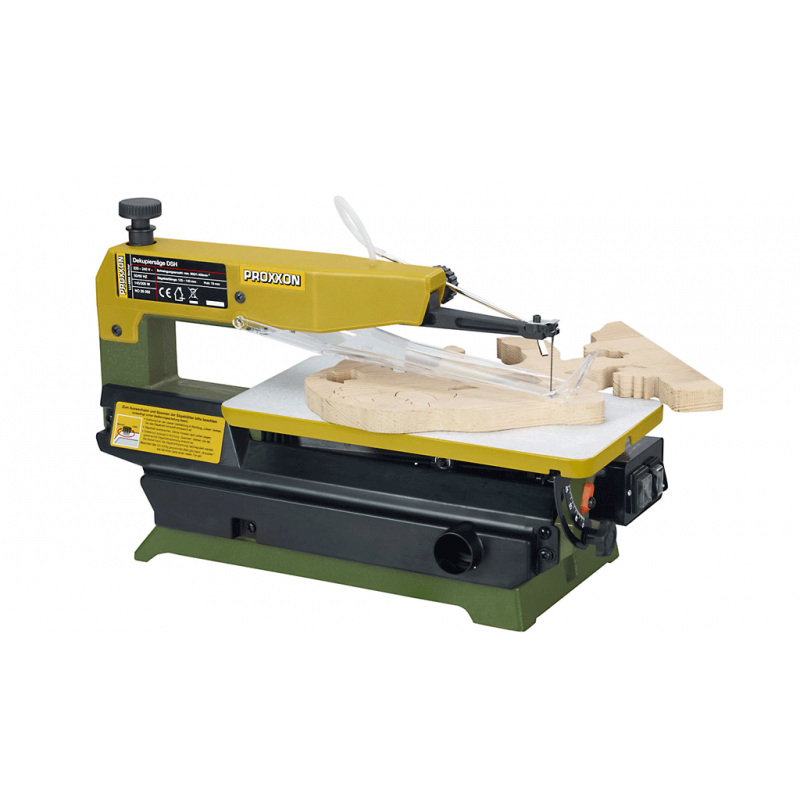

DSH - Proxxon 2-speed cutting saw

PRX-28092

DSH - Proxxon 2-speed cutting saw - 28092

The standard model 10,000 times proven. With reach of 400 mm.

€249.00
Tax included
Quantity
Last items in stock

100% secure payments
Description

Cutting capacity in wood 50 mm, plastic 30 mm, non-ferrous metals 10 mm.

For cutting plexiglass, fiberglass, foam, rubber, leather or cork. Die-cast aluminum saw arm, thin to ensure good visibility from above. Blower with adjustable tip allows a clear visibility on the place of the cut. Solid cast aluminum table under pressure (360 x 180 mm), can be tipped on 45 ° for bias cuts. Base cast steel chassis for stable position and vibration-free work. Including 5 saw blades with large and thin teeth.



r2.pngThe ideal device, especially for more frequent interior cuts. r3.pngA bellows with adjustable air nozzle ensures good visibility. Solid cast aluminum table under pressure (360 x 180 mm), can be tipped to 45° for tab cutting


Technical data:

230 V.
Powerful brushless motor 2 speeds (205 W).
Setting 900 or 1.400rpm.
Stroke 19 mm.
Reach 400 mm.
Maximum cutting depth 50 mm, 25 mm for a 45° tab.
Weight approx. 17 kg.


Especially important for a circular saw: a suction tip with adapter allows clean work. We recommend the use of our compact CW-matic workshop vacuum cleaner.


Recommended accessories:

Thin Blades Supercut without ergot. 130 mm.



For hard and soft wood, plastic, plexiglass and soft nonferrous metal.

Coarse teeth (No. 9: 14 teeth by 25 mm):
NO. 28,116     130 x 1.50 x 0.48 mm 12 pieces

Medium tooth (No.5: 17 teeth by 25 mm):
NO. 28,117     130 x 1.20 x 0.38 mm 12 pieces

Fine teeth (No.3: 20 teeth by 25 mm):
NO. 28,118     130 x 0.80 x 0.34 mm 12 pieces



For hard materials such as iron and PERTINAX.

Medium tooth (No.5: 36 teeth by 25 mm):
NO. 28,112     130 x 0.85 x 0.4 mm 12 pieces

Fine teeth (No.3: 41 teeth by 25 mm):
NO. 28,113     130 x 0.75 x 0.36 mm 12 pieces

Ultrafine teeth (No.1: 50 teeth by 25 mm):
NO. 28,114     130 x 0.6 x 0.3 mm 12 pieces

Round blade. 130 mm. With flat ends (without ergot).



For circular cuts from 1.5 mm. Cutting on all sides, do not turn the part to be shaped (important for large parts). For plastic, soft and hard wood.

NO. 28,747     130 x 1.2 mm 12 pieces

Standard blades with ergot for fine cuts. 127 mm.




Coarse toothed (10 teeth by 25 mm):
For soft and hard wood, plastic and other soft and especially thick materials.
NO. 28,741     127 x 2.61 x 0.51 mm 12 pieces

With normal teeth (18 teeth by 25 mm):
For fine materials, soft and hard wood, plastic.
NO. 28,743     127 x 2.25 x 0.51 mm 12 pieces

Fine toothed (25 teeth by 25 mm):
For non-ferrous metals, fiberglass, plastic, wood and plexiglass.
NO. 28,745     127 x 1.76 x 0.25 mm 12 pieces

Product Details
PRX-28092
1 Item
